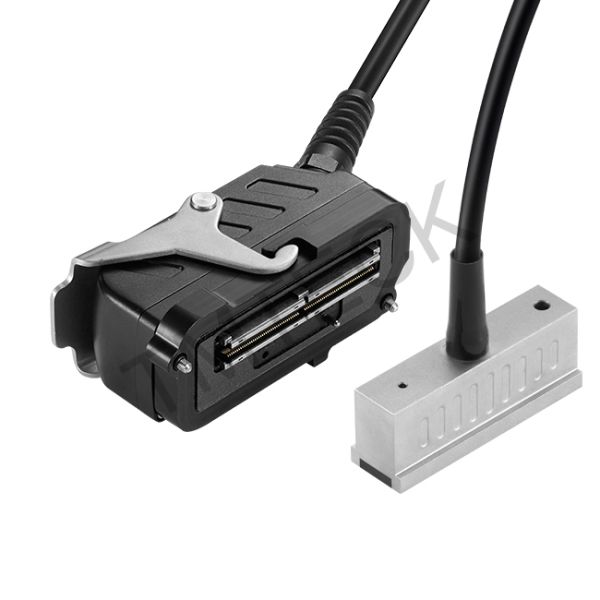

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Near-wall probes have shorter dead zones at both ends
3.Widely used in composite channel inspection
4.Can be used for C-scan detection of composites (delamination, debonding and porosity)
5.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
Probe
Series | Model | Compatible Model | Element
Shape | Freq (MHz) | E-Nos | Pitch
(mm) | Active
Aperture (mm) | Elev. (mm) | Size(LxWxH) |
| TS13/NW1 | 1L32-2.0x7 | 1L32-64x7 | Linear | 1 | 32 | 2.00 | 64.0 | 7.0 | 66x19x25 (mm)
2.60x0.75x0.98 (in) |
| 2.25L64-1.0x7 | 2.25L64-64x7 | Linear | 2.25 | 64 | 1.00 | 64.0 | 7.0 |
| 3.5L64-1.0x7 | 3.5L64-64x7 | Linear | 3.5 | 64 | 1.00 | 64.0 | 7.0 |
| 5L64-1.0x7 | 5L64-64x7 | Linear | 5 | 64 | 1.00 | 64.0 | 7.0 |
| 7.5L64-1.0x7 | 7.5L64-64x7 | Linear | 7.5 | 64 | 1.00 | 64.0 | 7.0 |
| 10L64-1.0x7 | 10L64-64x7 | Linear | 10 | 64 | 1.00 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:1L32-2.0x7-TS13/1L32-64x7-NW1
Element:32
Element Shape:linear
Size:LxWxH 66x19x25(mm) 2.60x0.75x0.98(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
