Dual 1.5D Probes: Provide off-the-shelf inspection capabilities to cover a wider range of inspections with a superior signal-to-noise ratio.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Use for wave S-scans, pitch-catch longitudinal inspection strategy for better inspection.
3.Combined with detection, high detection accuracy and the small defects are quantified.
4.Wide the detection range, good SNR.
Applications
1.Railway: rails, wheel tracks, bridges, etc.
2.Conventional: Weld Inspection, Bottle Welds, Pipeline Turbine Blades, Rotor Detection
3.Electricity: welds, forgings, castings, fittings, bridges and structural steel
4.Other: Austenite detection
Specification
Probe
Series | Model | Element
Shape | Freq (MHz) | E-Nos | Pitch
(mm) | Active
Aperture (mm) | Elev. (mm) | Size(LxWxH) |
| TS31/A17 | 2.25DM7x4-2.8x3 | Dual 1.5D Matrix | 2.25 | 56 | 2.8/3.0 | 19.6 | 12.0 | 34x16x25 (mm) 1.34x0.63x0.98 (in) |
| 4DM16x2-1.0x3 | Dual 1.5D Matrix | 4 | 64 | 1.0/3.0 | 16.0 | 6.0 |
| 5DM16x2-1.0x3 | Dual 1.6D Matrix | 5 | 64 | 1.0/3.0 | 16.0 | 6.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:2.25DM7x4-2.8x3-TS31
Element:56
Element Shape:Dual 1.5D Matrix
Size:LxWxH 34x16x25(mm)1.34x0.63x0.98(in)
Application:Railway: rails, wheel tracks, bridges, etc.
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
|
|

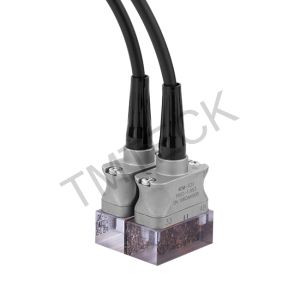

TS31 A17 Dual 1.5D Matrix Probe Images
|
