TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION

Name: TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
Brand: TMTeck
Price: 1 USD

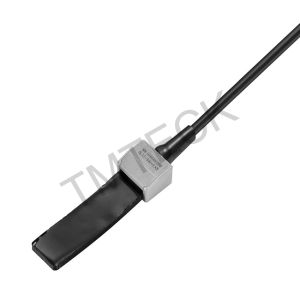

Wholesale TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION from china suppliers

Brand Name : TMTeck

Model Number : 5L64-1.0X8-TS41

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100pcs/ one week

Delivery Time : 4-6 work days

Packaging Details : carton

Element : 64

Size : 100x27(mm) 3.94x1.06(in)

Application : Pipeline and bar corrosion inspection

Type : phased array probe

Contact Now

TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION

Flexible phased array probe:

can be bent at will. It used water as the coupling medium, which can be very well coupled in detecting pipes, bars and other components.

Advantages

1.Bent to fit the workpiece surface at axis direction 3-4mm thick,can be placed inside the pipe for inner inspection

2.Can be used for different diameter pipes

Application

1.Pipeline and bar corrosion inspection

2.The workpiece can be measured and imaged

3.Other complex geometric artifacts

Specification

Probe Series	Model	Element Shape	Freq (MHz)	E-Nos	Pitch (mm)	Active Aperture (mm)	Elev. (mm)	Size (mm)
TS41	5L64-1.0X8	Linear	5	64	1	64	8	100x27(mm) 3.94x1.06(in)
	7.5L64-1.0X6	Linear	7.5	64	0.5	32	6
	10L64-0.5X5	Linear	10	64	0.5	32	5
	15L64-0.5X5	Linear	15	64	0.5	32	5

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5L64-1.0X8-TS41

Element:64

Element Shape:Linear

Size:100x27(mm) 3.94x1.06(in)

Warranty:12 Months

Case:Stainless steel

Application:Pipeline and bar corrosion inspection

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1

TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION Images
